AruzeGaming Muso Triple-27
27 inch Main TouchMonitor Cube-X
Fully compatible with the original setup, this LCD panel is designed to seamlessly
upgrade and replace the display on the Light & Wonder Cosmic button panel.
It delivers sharp image quality and vibrant colors, supports true plug‑and‑play
installation, and requires no adjustments for immediate integration.
- Monitor Model: W27UDY21-3D-A1-TPP
- TMD Model: TOT2702EPC-V16

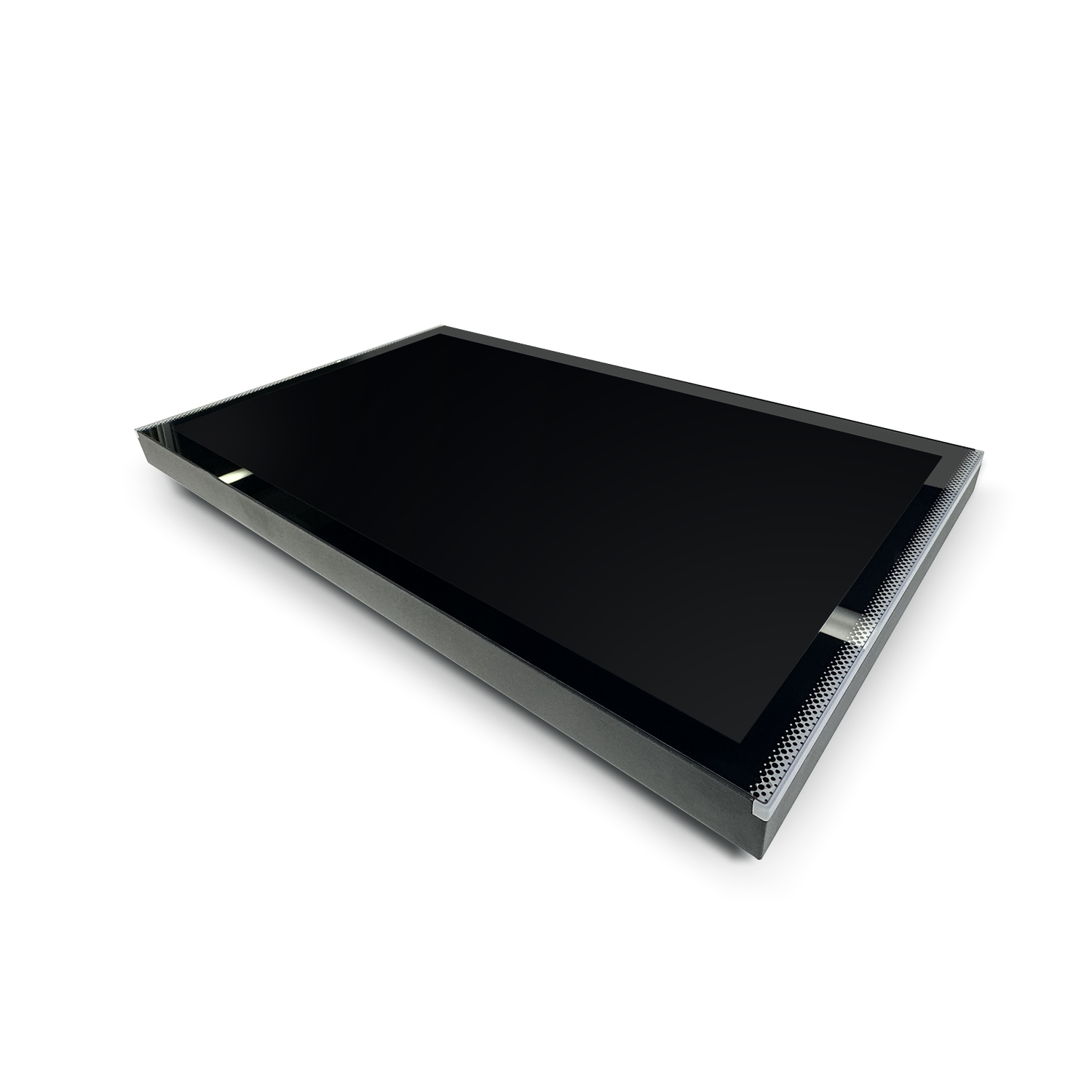

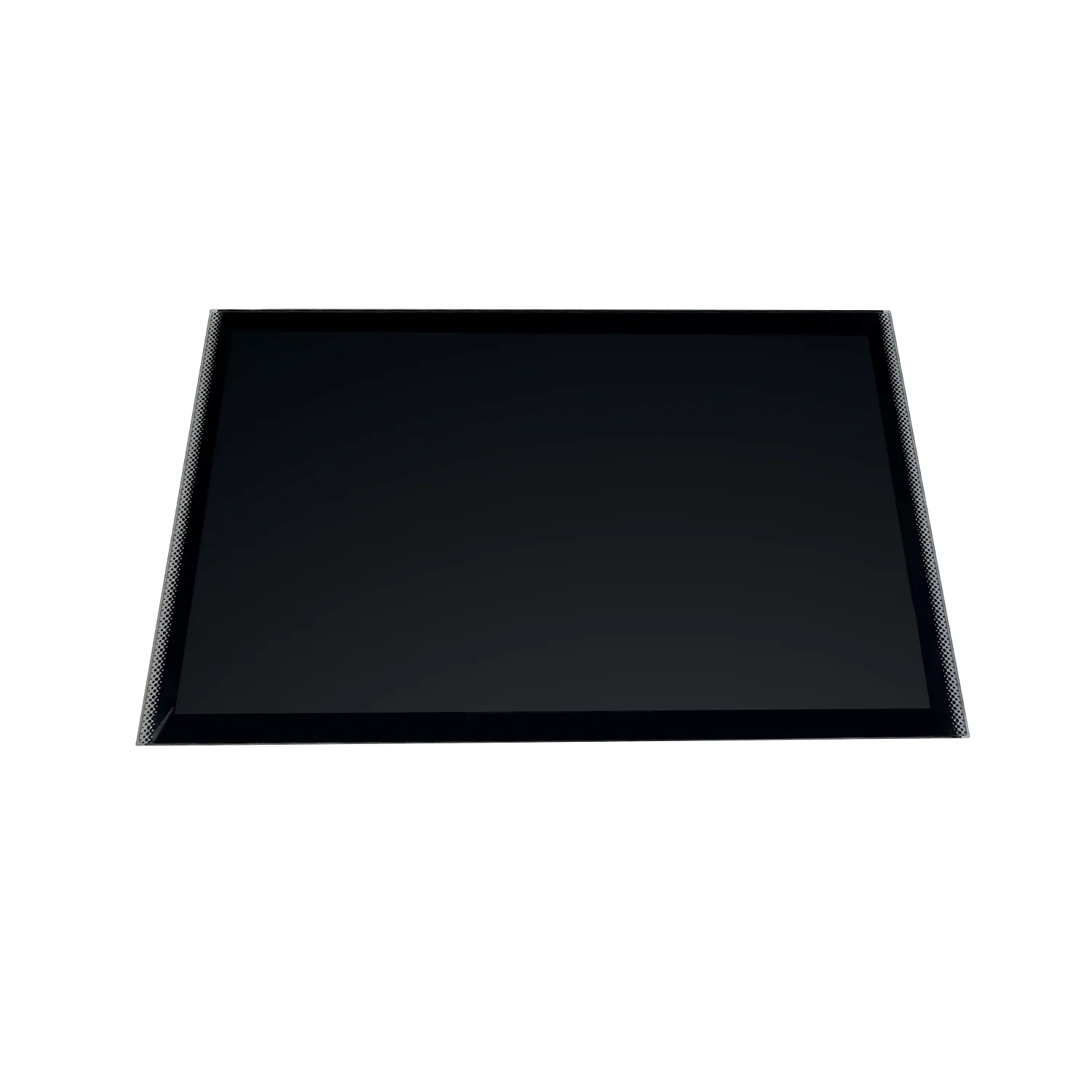

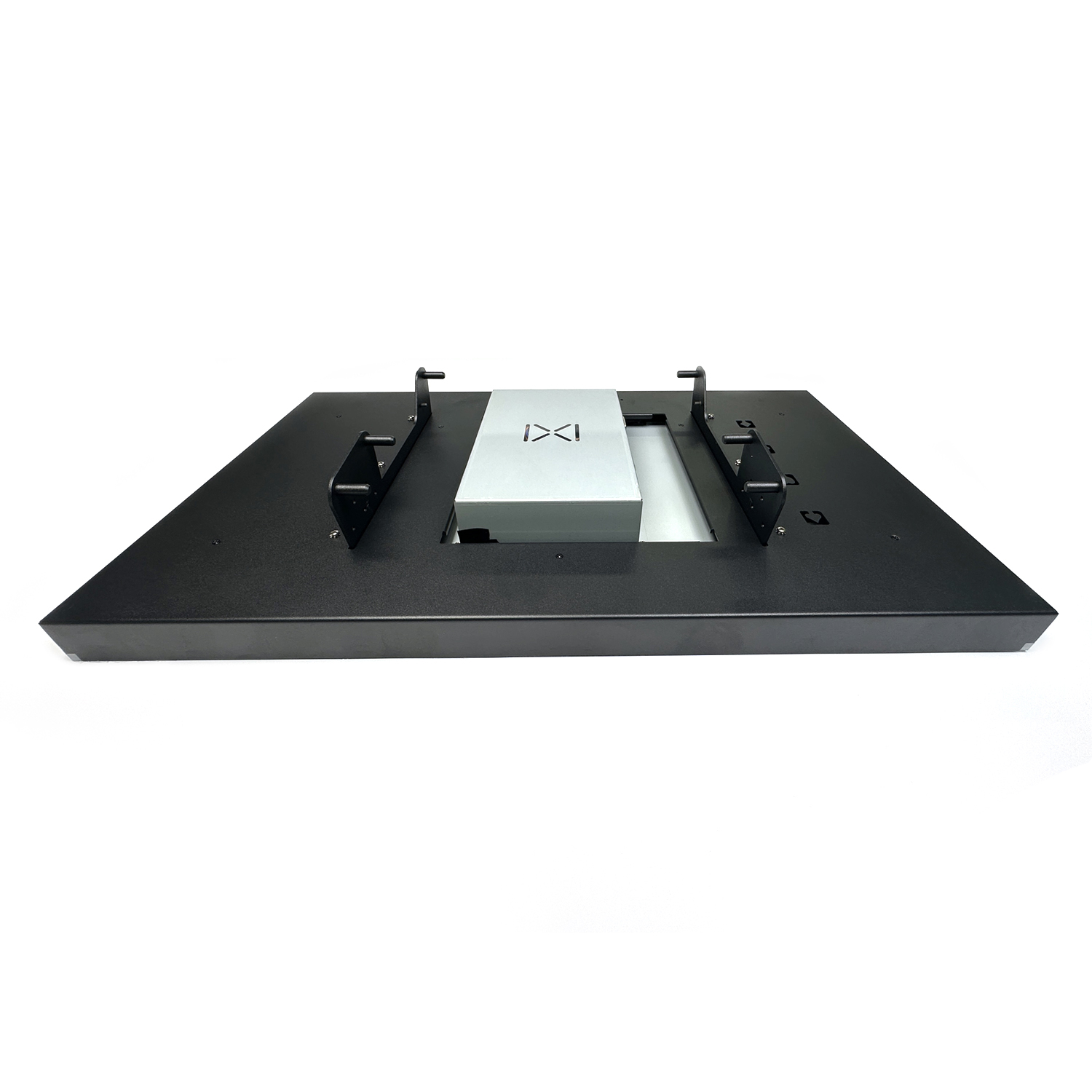

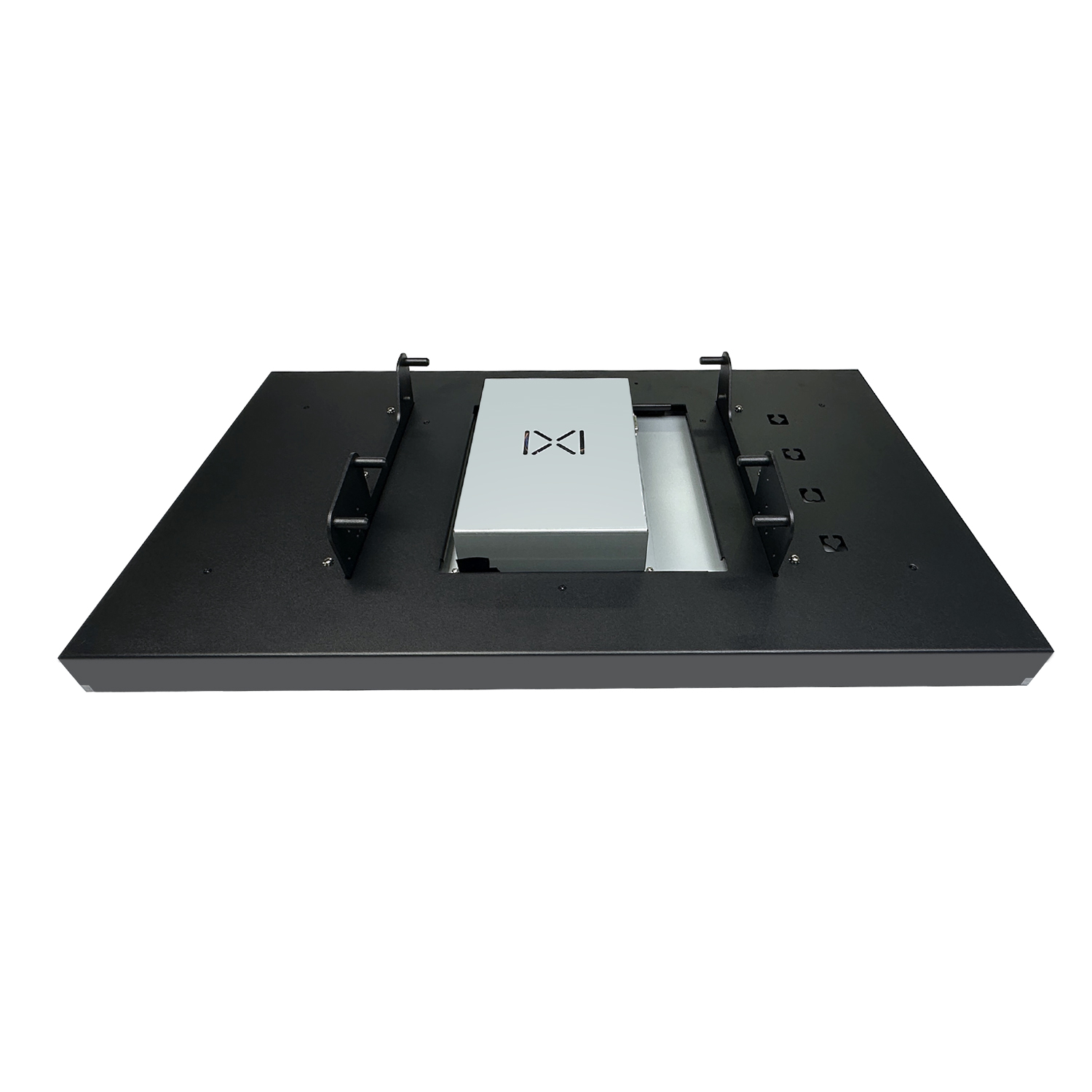

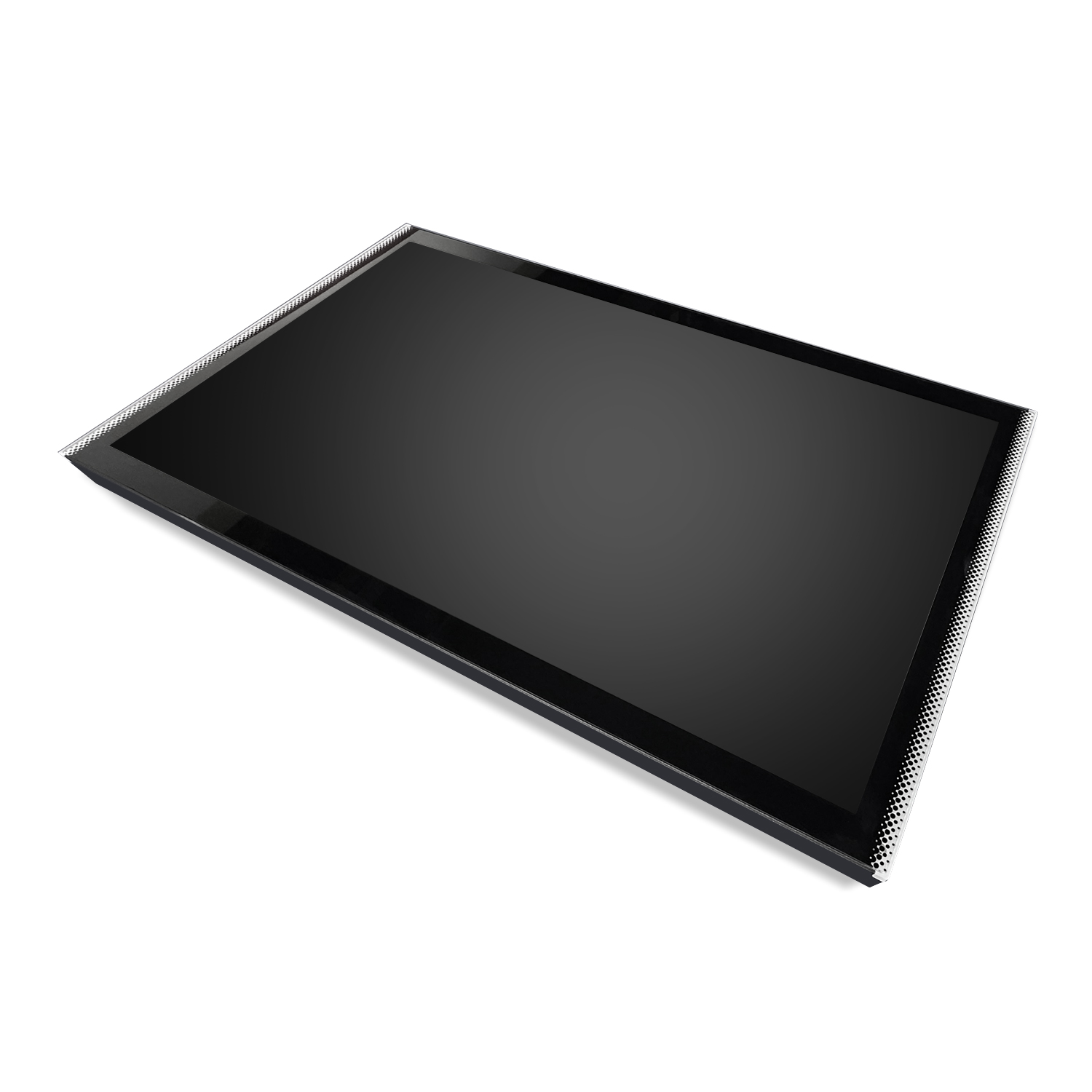

Product Images
"How are your displays different from
the generic ones?"
This is one of the questions we hear most often from customers.
Our answer is simple: Technology drives value. Capability guarantees results.
We choose the best LCD
panels, and build everything
else ourselves
Extreme testing for
guaranteed reliability
From the design stage, every TMD display uses
only A-grade materials, and once complete,
must pass a series of rigorous tests, including:
Our LCD panels are sourced from world-renowned
brands such as LG and AUO, always A+ grade,
ensuring the highest level of image quality,
brightness, and lifespan.
- ESD (electrostatic discharge) tests
- High & low temperature cycling
- Salt and alkali resistance tests
- Vibration tests
- Drop tests
Aside from the LCD panel, nearly every other
component inside our displays — driver boards,
controller cards, interface boards, lighting modules,
and more — has been progressively replaced with
TMD-designed and manufactured modules.
Every model we release is proven under extreme
conditions. If it doesn’t pass, it doesn’t
leave the factory.
All our modules are engineered to industrial-grade
standards, with many using automotive-grade or
even military-grade materials, ensuring they can
withstand long operating hours and harsh
conditions while maintaining stable performance.
Fully self-developed
modulesfor stronger system
compatibility
Generic assembly vs.
custom engineering
Many low-cost displays in the market are simply
“generic panel + generic driver board + housing”.
They may look cheap, but :
Our internal modules include:
- LCD driver boards
- RGB lighting controllers
- Bash Button controllers
- USB/serial interface boards
- LED strip controllers
- Poor module compatibility
- Messy control logic
- Inconsistent hardware between batches
- Failure often means replacing the entire unit
In the slot machine industry, where machines run
24/7 for years, stability, maintenance efficiency,
and unified standards are critical.
All are designed, tuned, and updated by the TMD
engineering team, ensuring strong system
compatibility, easy firmware updates, convenient
maintenance, and no risk of discontinued parts.
R&D is the core of product
value
Premium materials + strict
manufacturing
We only use brand-new A-grade materials
— never refurbished or recycled.
From SMT assembly and electrical testing to
burn-in, every step follows strict process standards.
Yes, it costs more, but quality is worth it.
Our pricing reflects:
- Investment in system architecture
- Long-term technical support capability
- Rapid and flexible customization
- Ongoing upgrade and maintenance assurance
If all you need is a screen that “turns on”, the
market has cheaper options. But if you want a
reliable, upgradable, and long-term
maintainable system, our products are the
right choice.
In summary
You’re not just buying a display. You’re getting:
- A complete integrated system
- A platform built for upgrades and maintenance
- A technical team that’s always ready to respond
- A manufacturer that takes responsibility seriously
Product Characteristic
Mechanical
TOT2702EPC-V16
649mm x 384mm x 104.49mm
11.44kg
720mm x 130mm x 450mm
12.7kg
Product Model
Product Dimension
Net Weight
Package Dimension
Gross Weight
LCD Display
27 inch
597.88 x 336.31mm
1920*1080
0.2928mm
16.7M
16：9
1000：1
250cd/cm²
LED Lighting Bar Type
89/89/89/89
Panel Size
Active Area
Number Of Pixels
Pixels Pitch
Display Colors
Scale Ratio
C/R
Brightness
Back-Light
Viewing Angle Range
Touch Screen
P-CAP
10Points（Max）
G+G
Glass T=2.0mm
USB-B Female and R232 DB9 Female
≥85%
Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
Windows xp/7/8/10, Linux, Android, MacOS
Customize protocol for USB interface
Supports Upgrade Firmware Via USB Interface
Touch Technology
Touch Points
Touch Construction
Touch Cover
Interface
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
Environmental
Operating：0°C~50°C
Storage：-20°C-65°C
Operating：10%-90%RH, 40°C
Storage：10%-90%RH, 40°C
Temperature
Humidity
Dimensional Drawing
Quality Assurance
- 2011
- 07-07
Products are assembled in a dust-free workshop,
all accessories are made of raw materials, no second hand materials.
all accessories are made of raw materials, no second hand materials.
