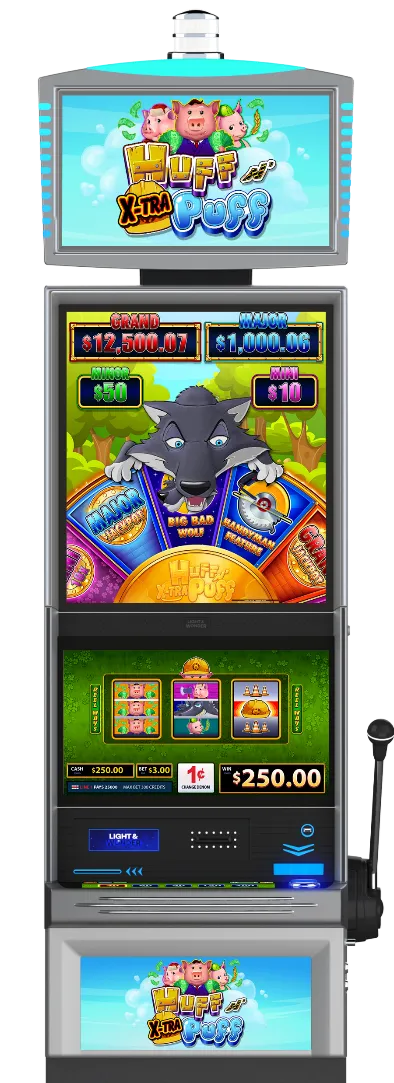

Light & Wonder LandMark 7000 Transparent
14.1"TouchScreen & Controller for iDeck
light-wonder-landmark-7000-transparent-slot

Fully compatible with the original setup, this capacitive touchscreen is designed to seamlessly upgrade and replace the touch sensor on the Light & Wonder LandMark 7000 Transparent or Transparent Digital Wheel iDeck. The package includes a dedicated controller for immediate integration.


Monitor Model

Monitor P/N

TMD Model

L15MFIT0LW

1594321-50

TPC141F-V1GC

tps7848-v2

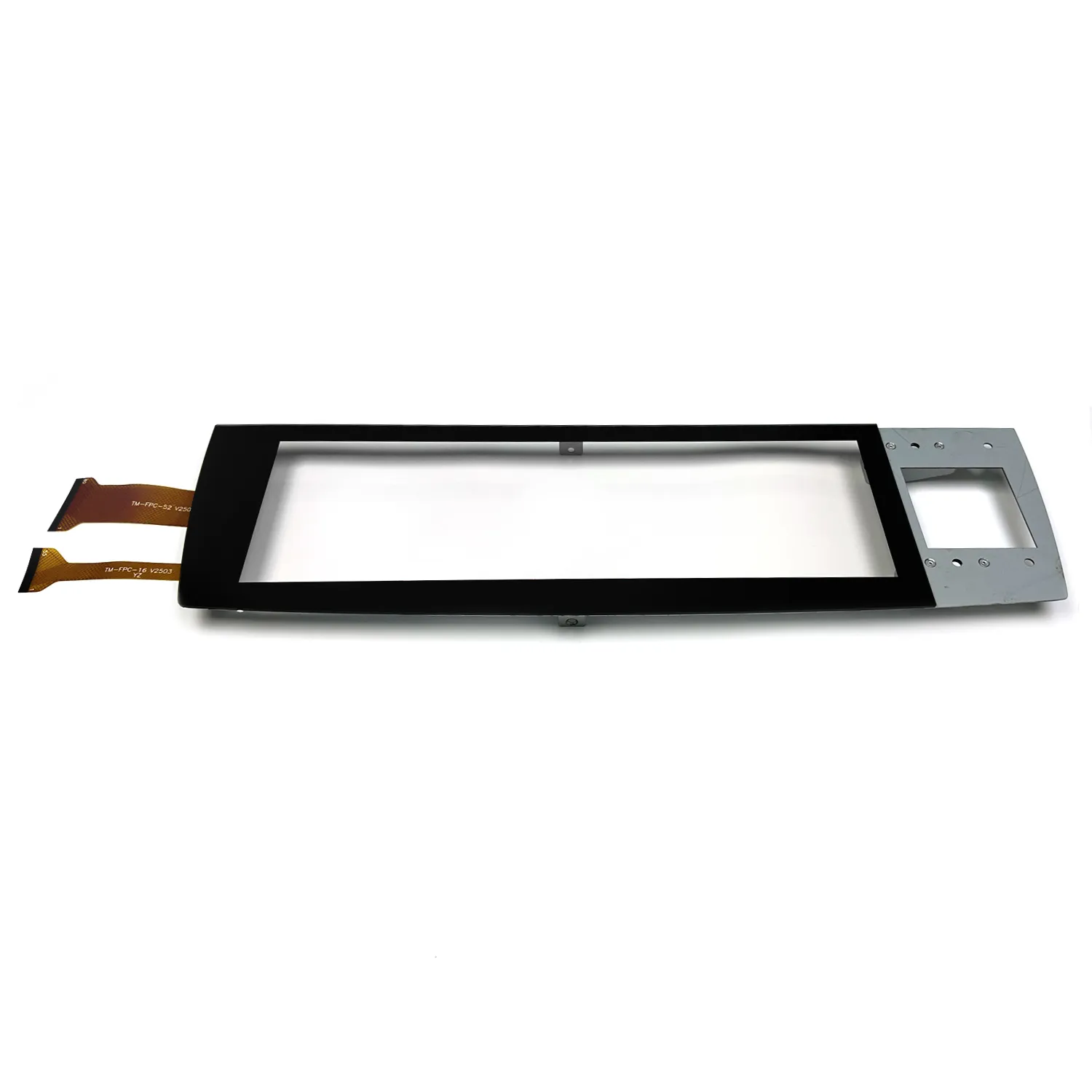

light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-01

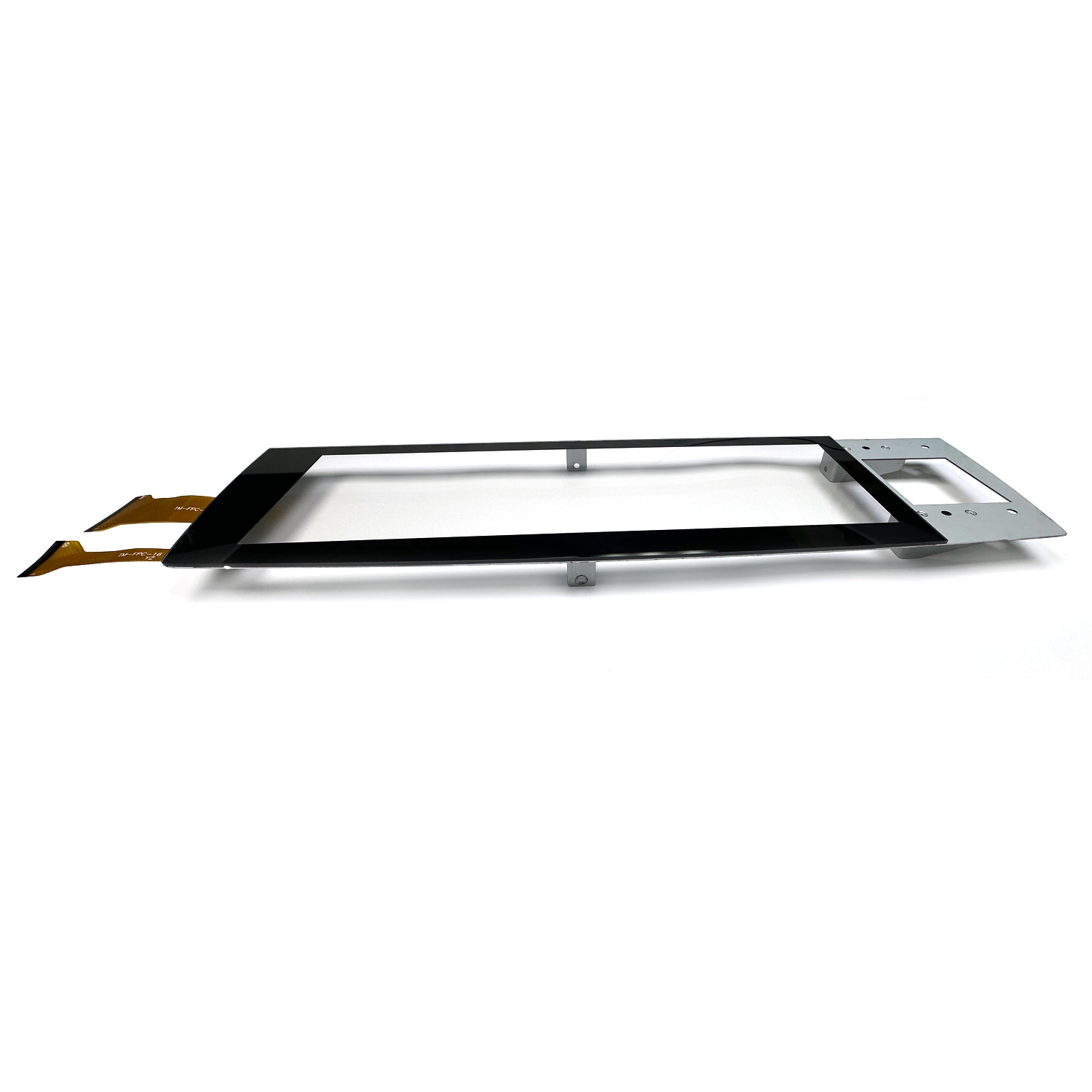

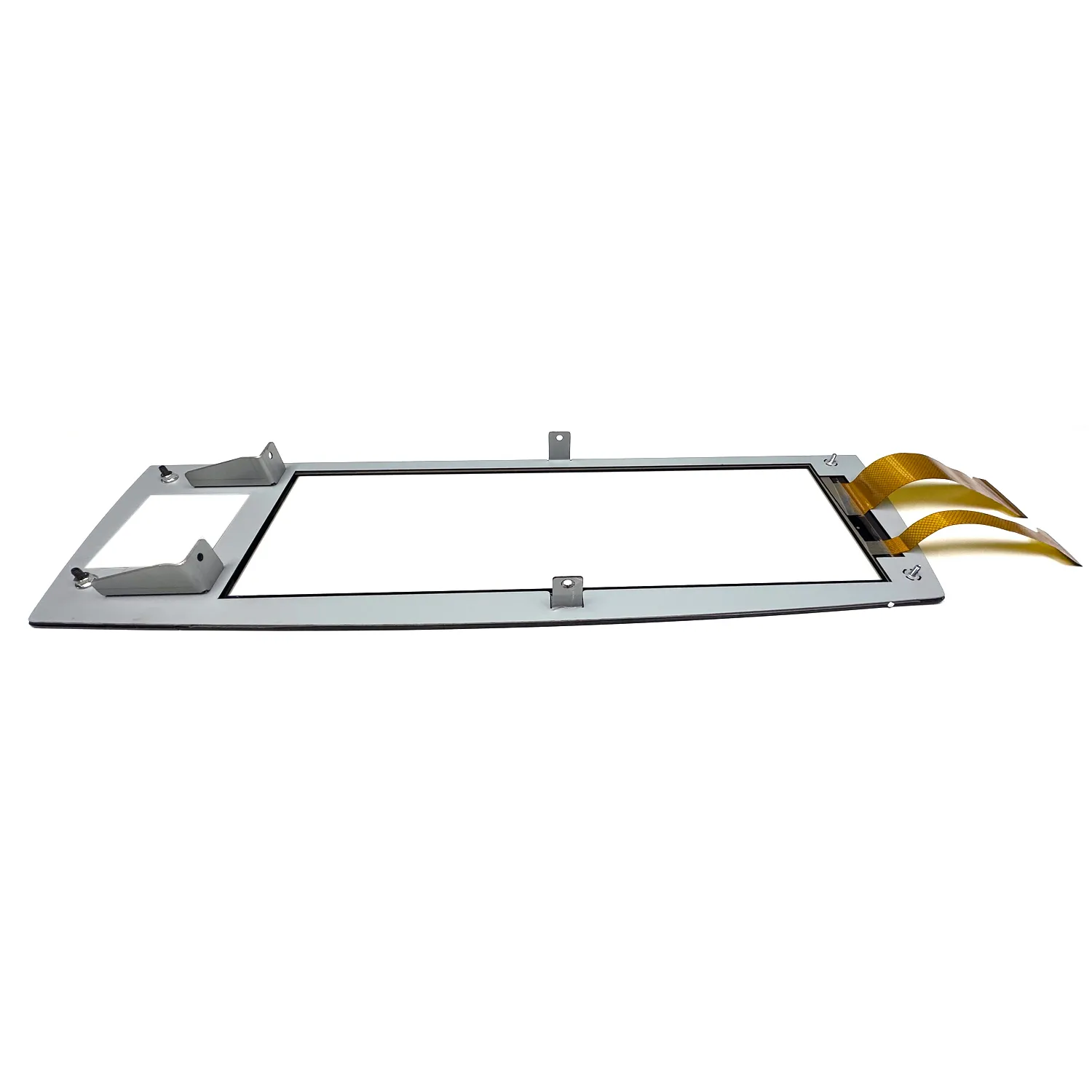

Product  Images

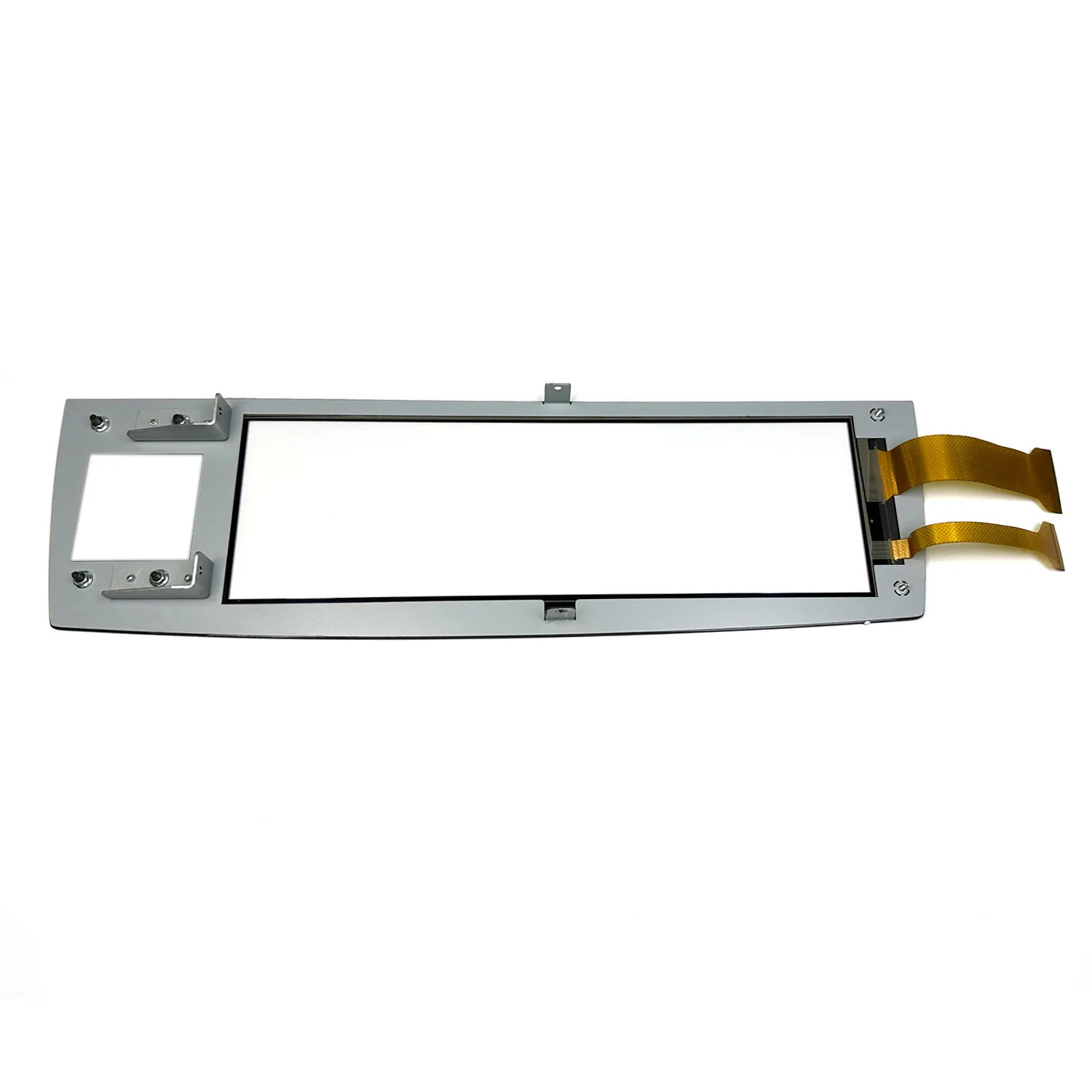

light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-02

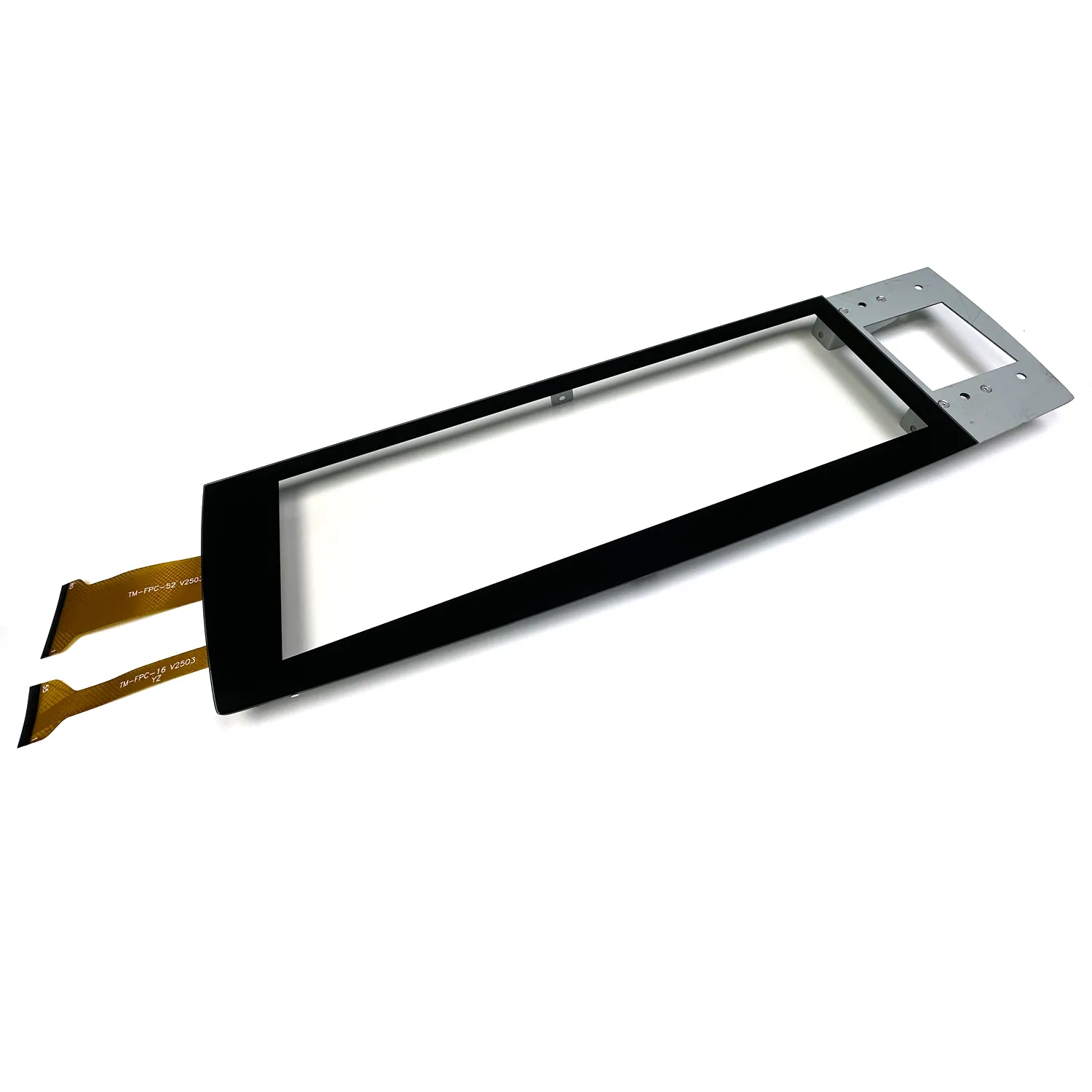

light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-03
light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-04
light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-05

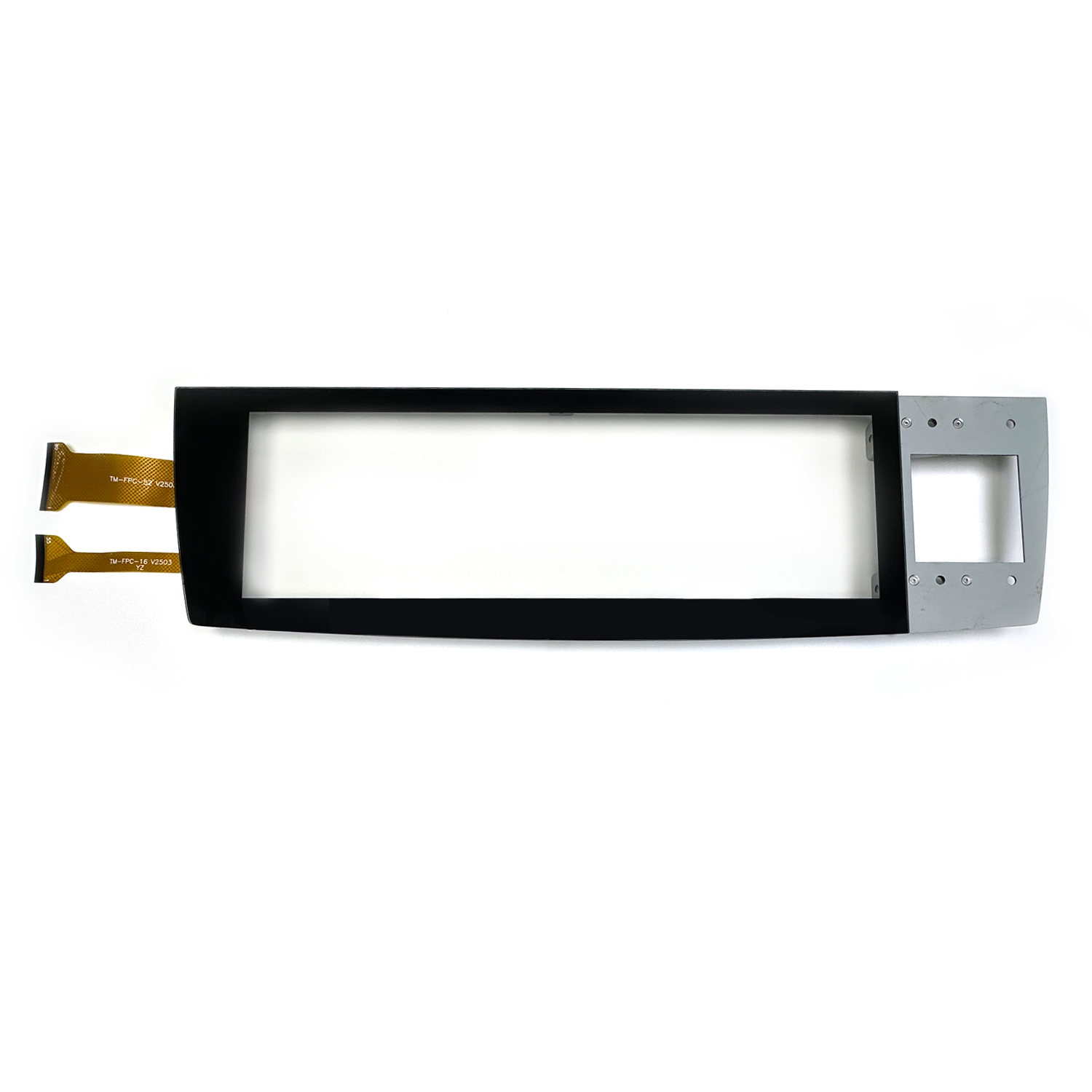

light-wonder-landmark-7000 transparent-ideck-tpc141f-v1gc-06

Technical parameters and characteristics

P-CAP

14.1"

10Points（Max）

L:488mm W:141mm

Glass T=2.0±0.2mm
USB2.0
≥85%
Finger
2mm（Central）, 2.5mm（Edge）
<10ms
Windows XP/7 /8/10, Linux, Android, MacOS
Customize protocol for USB interface
Supports Upgrade Firmware Via USB Interface

Touch Technology

P-CAP Size

Touch Points
Outline Dimension
Touch Cover
Interface Type
Transparency
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade

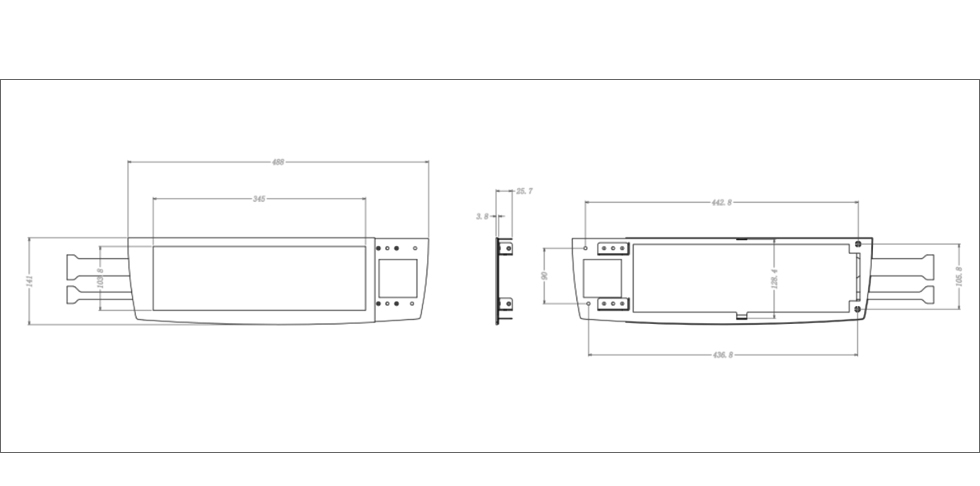

Dimensions

tpc141f-v1gc-dimensions
Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.
S-CAP——
P-CAP——
The touch point jumps and drifts when multi-touch occurs​
The touch point keeps stable when multi-touch occurs
