Innovation Gaming Device Lab - TMDtouch

42" Curved TouchMonitor Compatible With

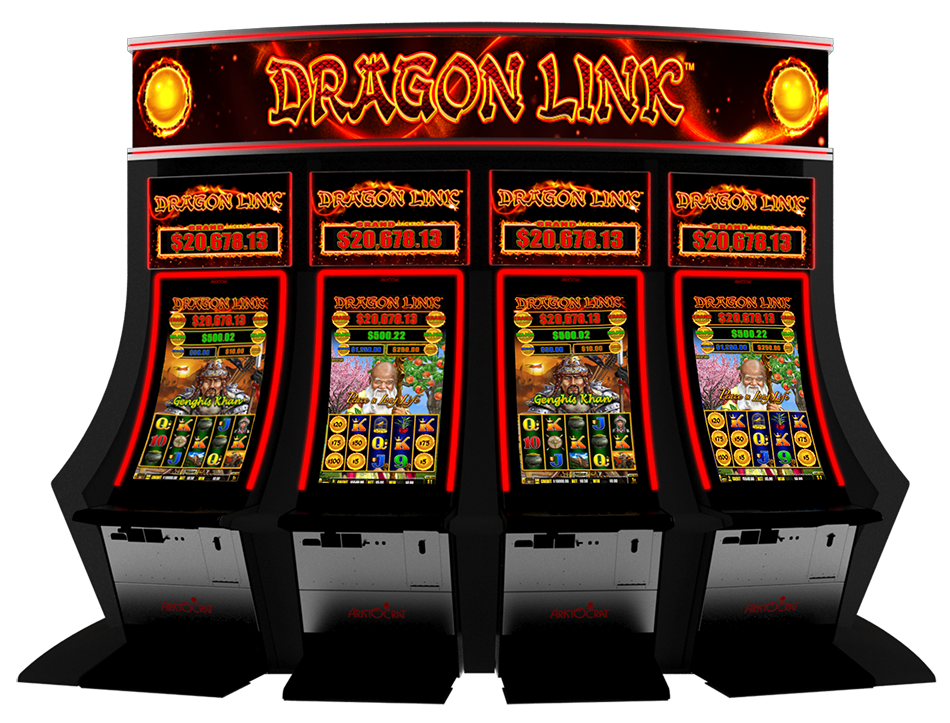

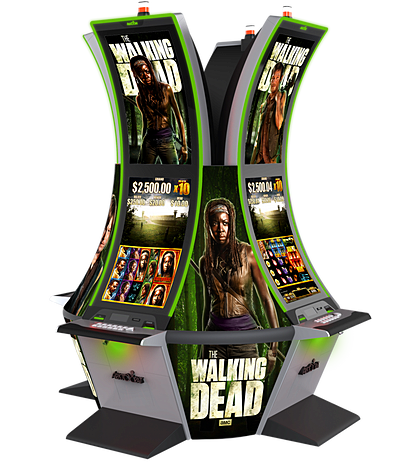

Aristocrat ARC Slant Cabinet Platform

*Platform name is used solely for compatibility identification

This product is an independently engineered aftermarket component designed for field maintenance and service replacement applications.

It is manufactured to match the mechanical interface and specifications required for compatibility with the Cabinet Platform Aristocrat ARC cabinet platform.

This product does not include any proprietary software and is not an OEM component.

Reference OEM P/N: 100435

Reference OEM Model: KTC420DPA01

TMD Model:TOT4302CPC-V3

*Compatibility Reference Information

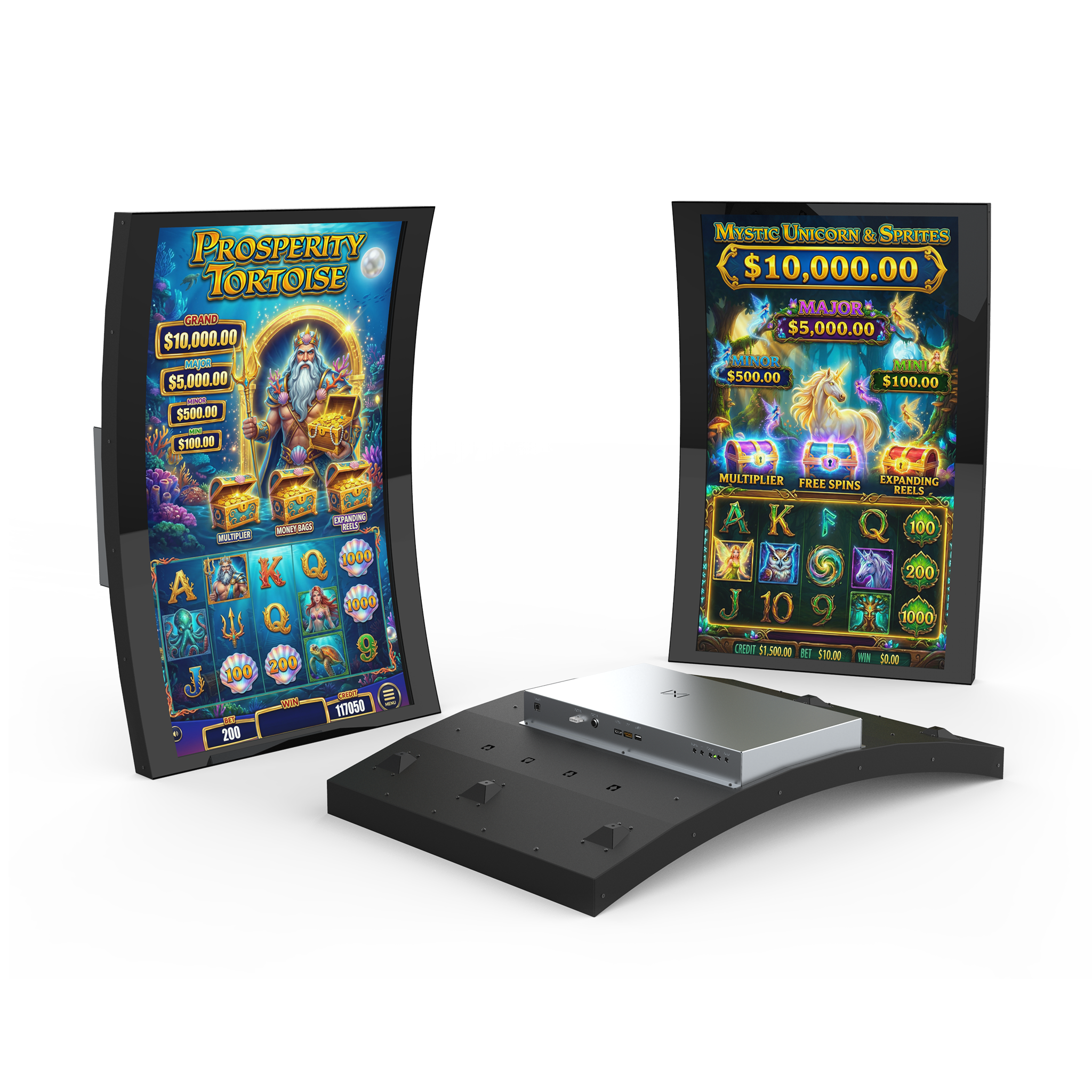

aristocrat-arc-touch-monitor-tot4302cpc-v3-01

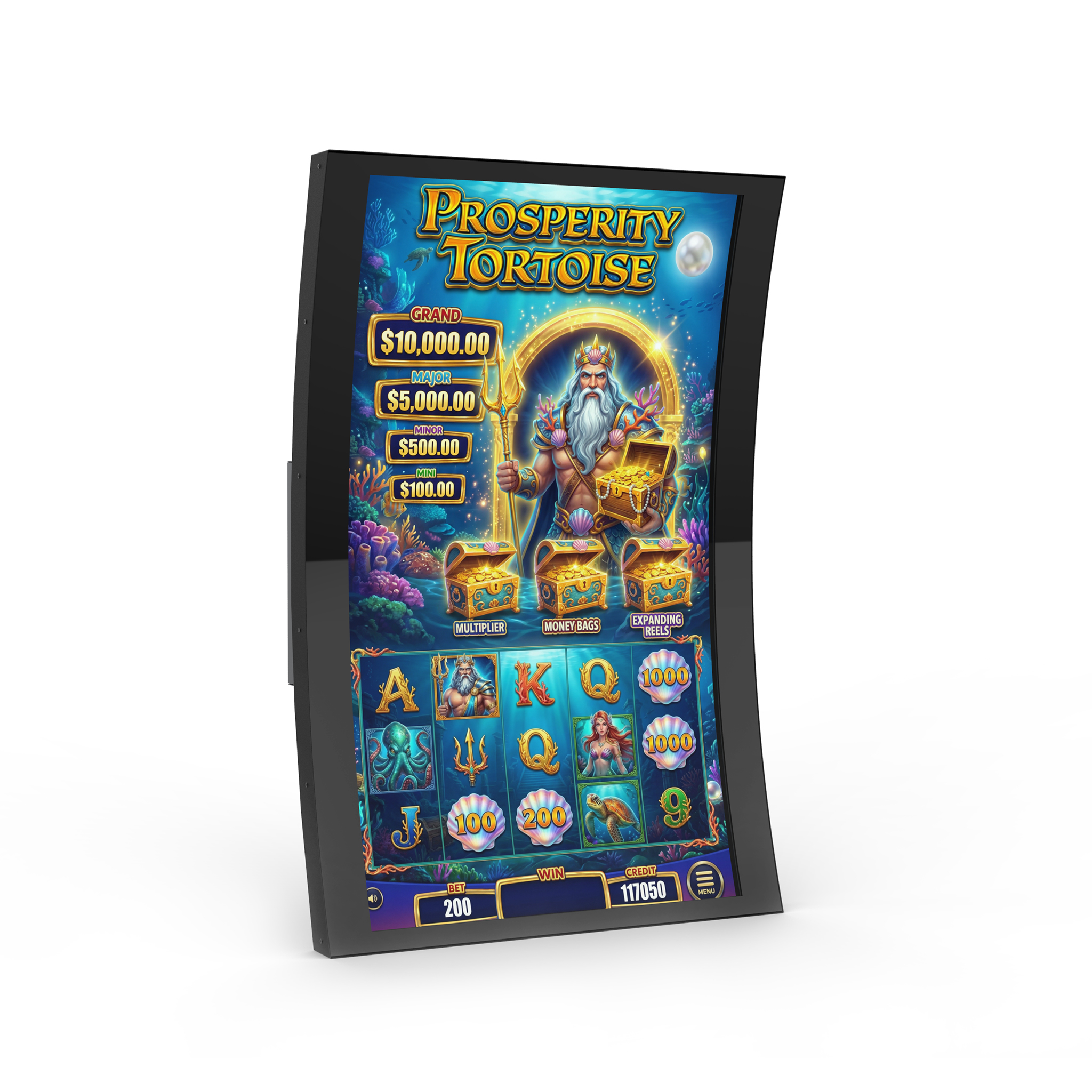

aristocrat-arc-touch-monitor-tot4302cpc-v3-02

Standard displays

Our open frame monitors are optimized for different user environments

We provide customized display solutions catering to varying display sizes, installation spaces, and other customer needs.

"I want to tell you，our products..."

Some features

Proven Projected capacitive touch technology，multi-touch and independent single-touch do not nterfere with each other.

P-CAP——

S-CAP——

The touch point keeps stable when multi-touch occurs

The touch point jumps and drifts when multi-touch occurs

"How are your displays different from

the generic ones?"

This is one of the questions we hear most often from customers.

Our answer is simple: Technology drives value. Capability guarantees results.

Extreme testing for proven reliability

We select high-quality LCD panels and develop our own system modules in-house.

From the design stage, every TMD display uses

only A-grade materials, and once complete,

must pass a series of rigorous tests, including:

Our LCD panels are sourced from world-renowned

brands such as LG and AUO, always A+ grade,

ensuring the highest level of image quality,

brightness, and lifespan.

- ESD (electrostatic discharge) tests

- High & low temperature cycling

- Salt and alkali resistance tests

- Vibration tests

- Drop tests

Aside from the LCD panel, nearly every other

component inside our displays — driver boards,

controller cards, interface boards, lighting modules,

and more — has been progressively replaced with

TMD-designed and manufactured modules.

Every model we release is proven under extreme

conditions. If it doesn’t pass, it doesn’t

leave the factory.

All our modules are engineered to industrial-grade

standards, with many using automotive-grade or

even military-grade materials, ensuring they can

withstand long operating hours and harsh

conditions while maintaining stable performance.

Generic assembly vs.

custom engineering

Fully self-developed

modulesfor stronger system

compatibility

Many low-cost displays in the market are simply

“generic panel + generic driver board + housing”.

They may look cheap, but :

Our internal modules include:

- LCD driver boards

- RGB lighting controllers

- Bash Button controllers

- USB/serial interface boards

- LED strip controllers

- Limited module compatibility in generic designs

- Messy control logic

- Inconsistent hardware between batches

- Failures may require replacement of larger assemblies

In the slot machine industry, where machines run

24/7 for years, stability, maintenance efficiency,

and unified standards are critical.

All are designed, tuned, and updated by the TMD

engineering team, ensuring strong system

compatibility, easy firmware updates, convenient

maintenance, and no risk of discontinued parts.

R&D is the core of product

value

Premium materials + strict

manufacturing

Our pricing reflects:

We only use brand-new A-grade materials

— never refurbished or recycled.

From SMT assembly and electrical testing to

burn-in, every step follows strict process standards.

Yes, it costs more, but quality is worth it.

- Investment in system architecture

- Long-term technical support capability

- Rapid and flexible customization

- Ongoing upgrade and maintenance assurance

If all you need is a screen that “turns on”, the

market has cheaper options. But if you want a

reliable, upgradable, and long-term

maintainable system, our products are designed for customers who value reliability and long-term maintainability.

In summary

You’re not just buying a display. You’re getting:

- A complete integrated system

- A platform built for upgrades and maintenance

- A technical team that’s always ready to respond

- A manufacturer that takes responsibility seriously

aristocrat-arc-touch-monitor-tot4302cpc-v3-03

Panoramic LCD

High-

Brightness Display

High Color

Gamut LCD Display

Product Images

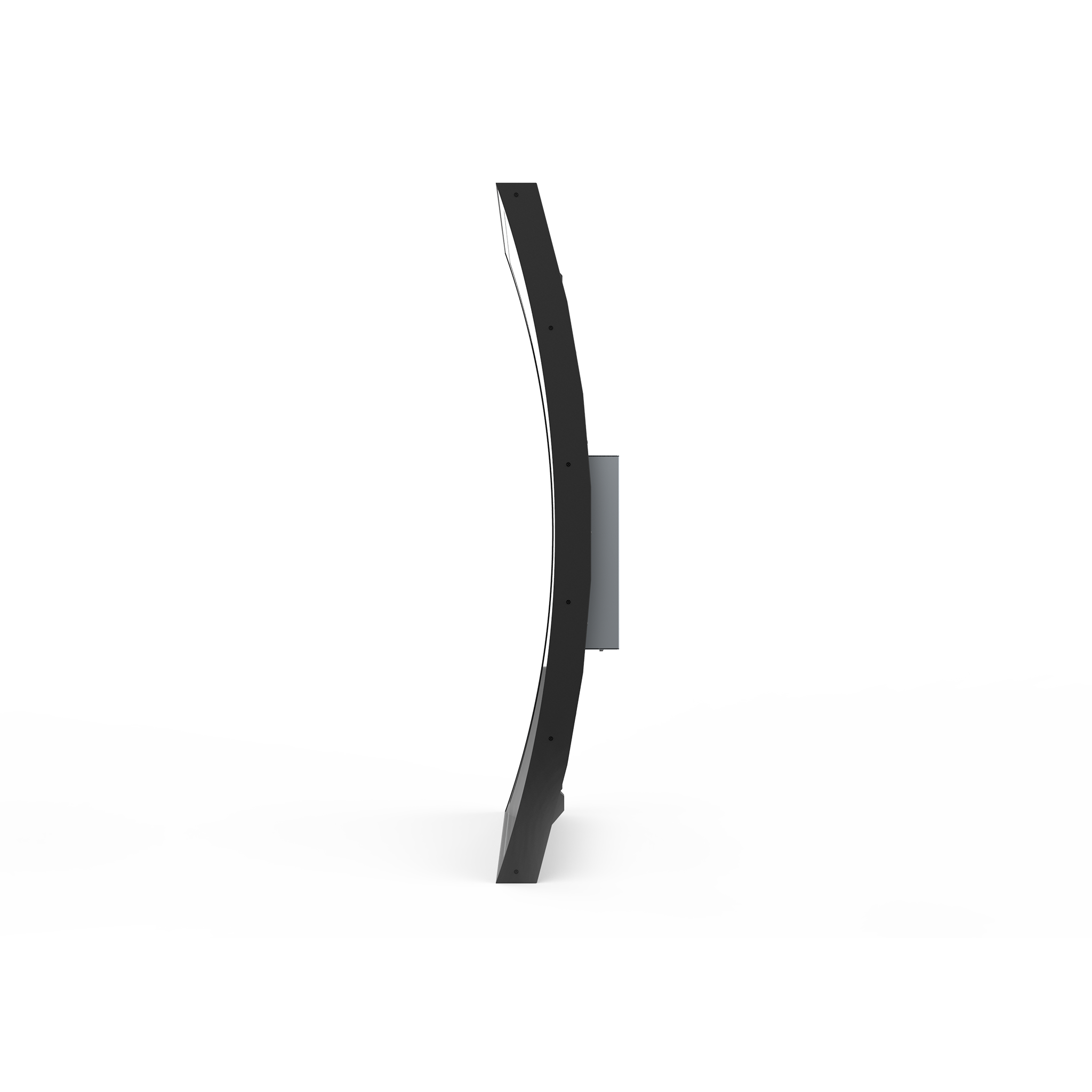

aristocrat-arc-touch-monitor-tot4302cpc-v3-05

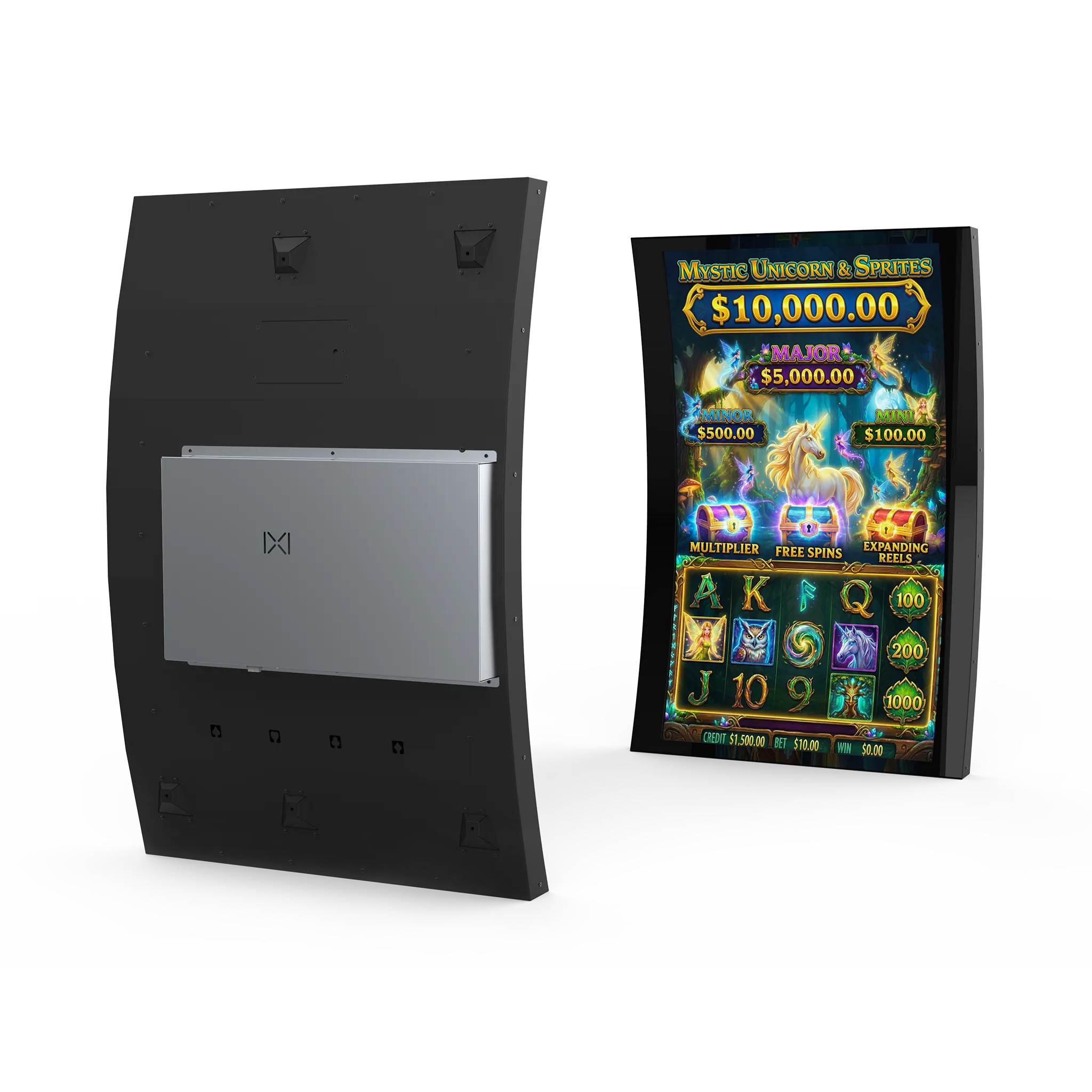

aristocrat-arc-touch-monitor-tot4302cpc-v3-04

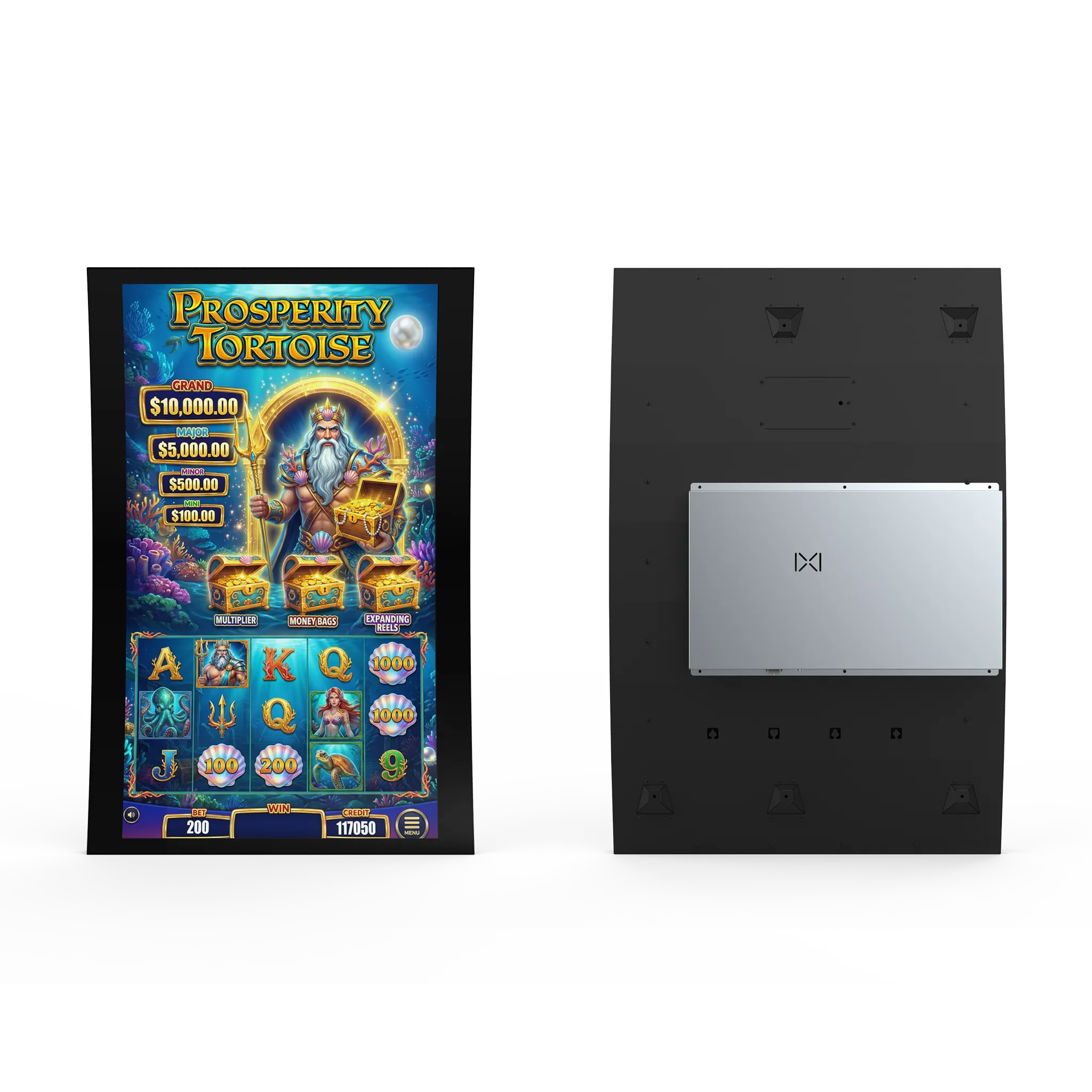

aristocrat-arc-touch-monitor-tot4302cpc-v3-06

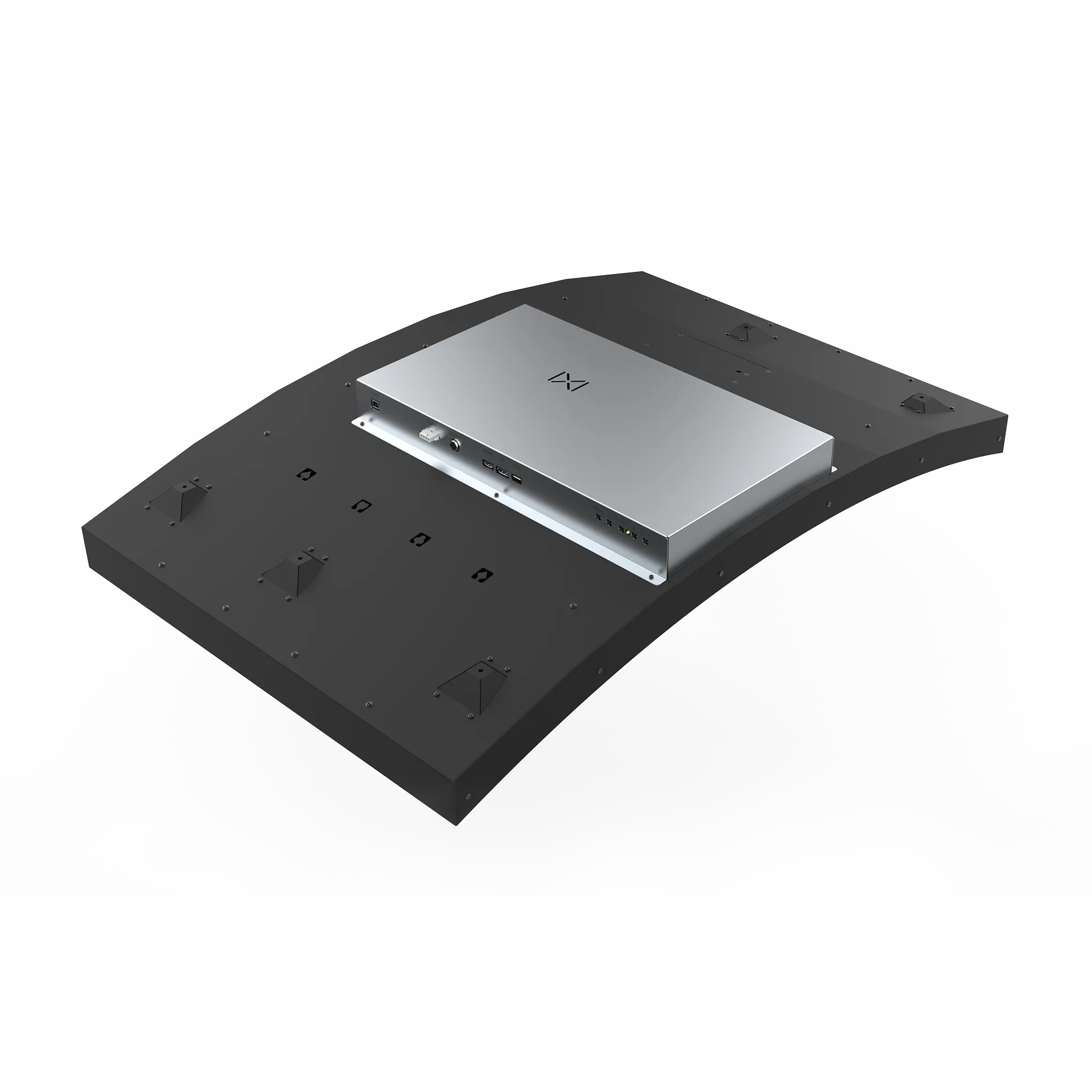

aristocrat-arc-touch-monitor-tot4302cpc-v3-07

Product Characteristic

Mechanical

TOT4302CPC-V3

976.5mm x 644.5mm x 178.04mm

Product Model

Product Dimension

LCD Display

Active Area

Number Of Pixels

Touch Accuracy

Input Source

Scale Ratio

C/R

Brightness

Touch Points

Touch Cover

Touch Technology

923.64mm x 528mm

1920*1080

2mm（Central）， 2. 5mm（Edge）

Finger Or Touch Pen

16：9

4000：1

500cd/cm²

10Points（Max）

Glass T=3mm

P-CAP

Environmental

Operating：0°C~50°C

Storage：-20°C-65°C

Operating：10%-80%RH, 40°C

Storage：10%-80%RH，40°C

Temperature

Humidity

Quality Assurance

2011
07-07
○
TMDtouch

Our company is established from this moment on.

Products are assembled in a dust-free workshop,
all accessories are made of raw materials, no second hand materials.

FAQ

Q1. Is this an OEM product?

No. This is a TMD aftermarket component, engineered for compatibility and reliable field replacement.
It is not an OEM part and is not affiliated with the original equipment manufacturer.

Q2.What services do we provide?

TMDtouch is a technology-driven R&D and manufacturing company, specializing in the touch and display field for 13 years, and has been designing and manufacturing touch display hardware for the gaming industry for over 10 years.

We design and manufacture P-CAP, Touch Monitor, Monitor, Button Panel, etc.

Additionally, we independently design and manufacture hardware components like touch controllers, power controllers, LCD drivers, and light controllers used in touchscreens and display devices.

Therefore, we offer various products and customized solutions in the touch and display field, especially for gaming industry hardware, and provide direct technical support.

Q3. How to purchase products and services? What is our response time?

You can organize your requirements and send them via email to Sales@tmdtouch.com. Our sales team will respond within 12 hours.

Q4. What is the delivery time?

Samples: 15-45 days after receiving the sample fee (customized products);

Goods: 15-30 days after receiving the payment.

Q5. What payment methods are available?

T/T, Paypal; full payment is required after placing the order.

Q6. How do you control product quality?

We own our factory, and each product undergoes at least 10 strict quality inspections before shipping.

Q7. What is the warranty period for the products?

The standard product warranty is 1 year, depending on the product. We offer lifetime paid technical support after the warranty period.

Q8. What is your after-sales service?

We provide 7x24 online technical support. If needed, we can dispatch technicians within 3-7 days in Asia, North America, Australia, and Europe.

Q9. What packaging methods and shipping options do you use?

Packaging includes anti-static bags, air cushion bags, pearl cotton pads, and sturdy gravity cartons.

For sea shipping, we provide export wooden crates.

Samples and small quantities are shipped via DHL, FedEx, UPS, with shipping costs borne by the buyer.

Larger quantities are shipped by air or sea, with shipping costs borne by the buyer.

Trademark & Compatibility Notice

Cabinet names, platform references, model codes, and OEM part numbers are used solely for compatibility identification purposes.

TMD is an independent technology and manufacturing company.

Certain products may be designed as aftermarket solutions and are not OEM parts, nor are they manufactured, sponsored, authorized, or endorsed by the original equipment manufacturers.
